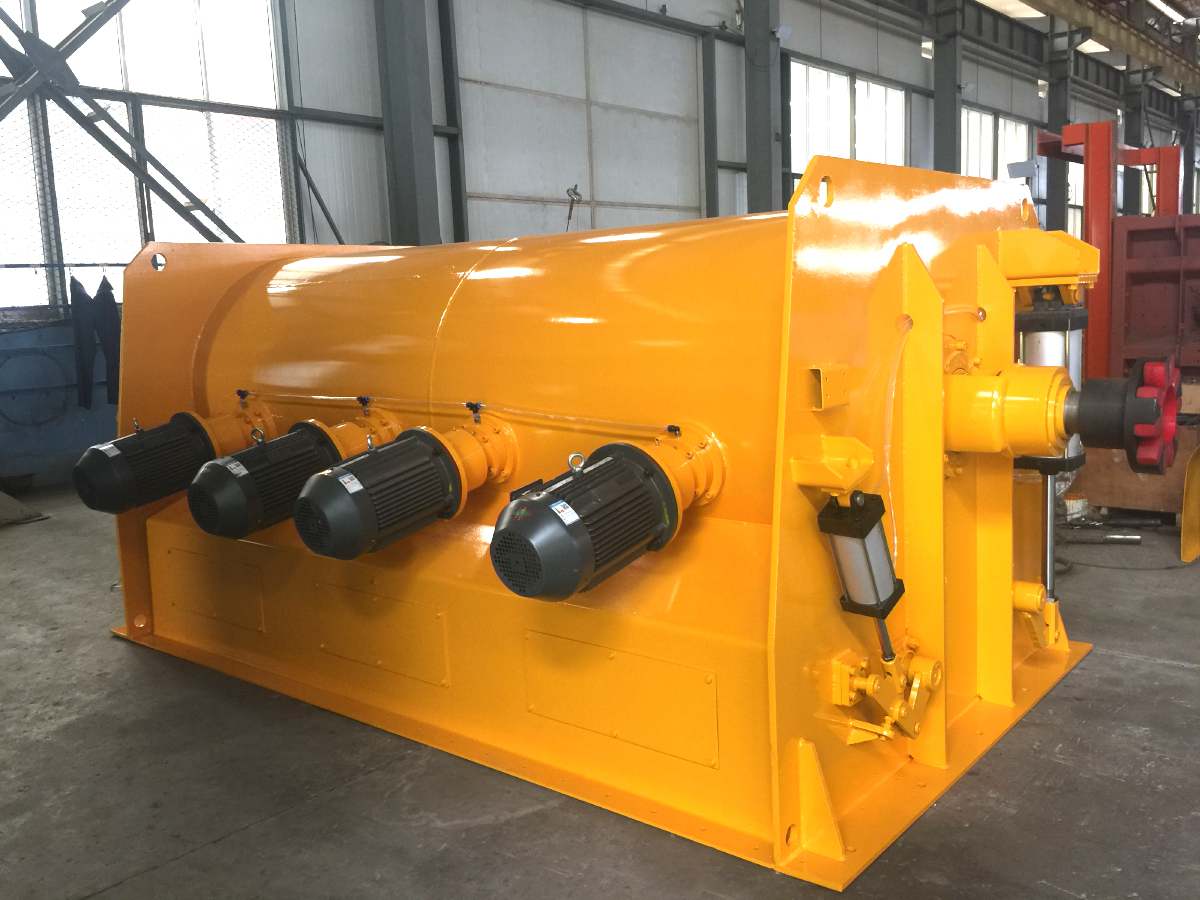

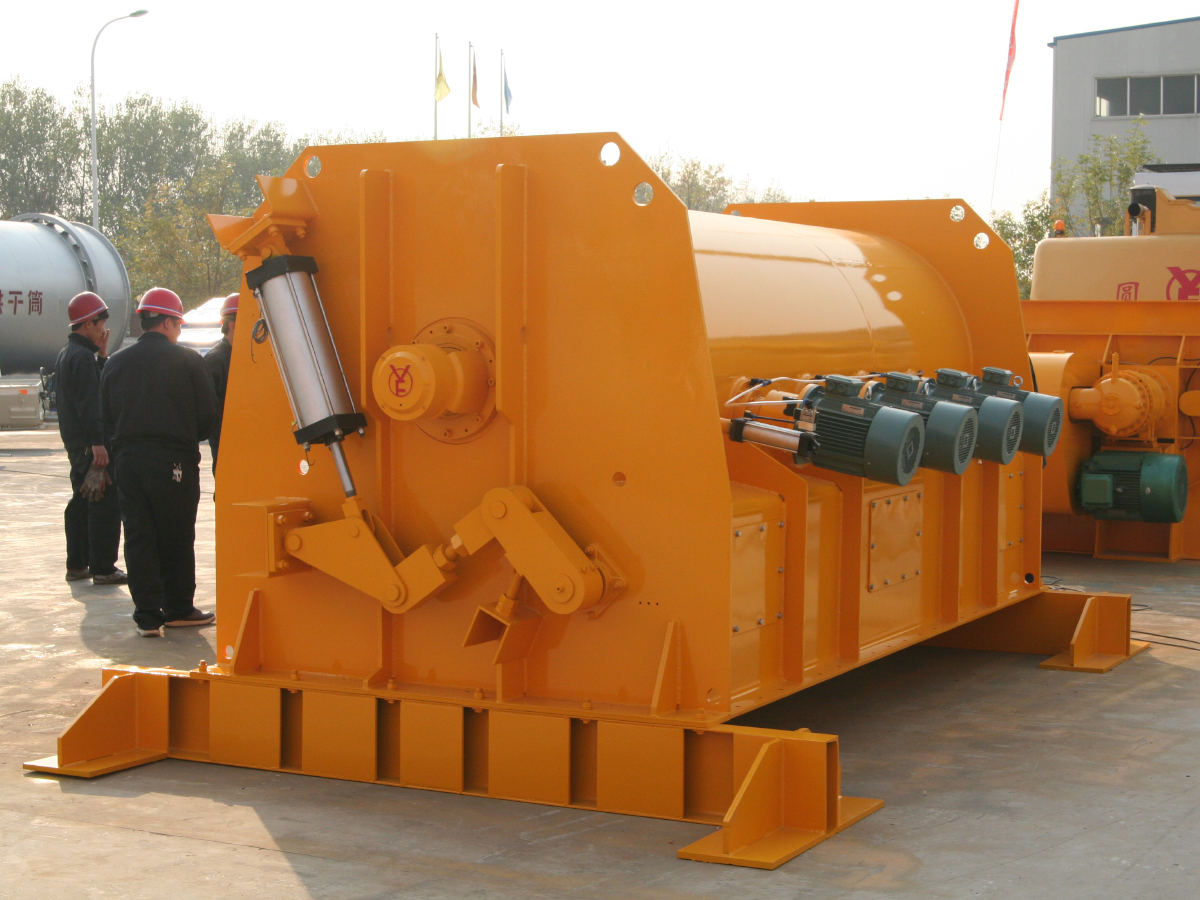

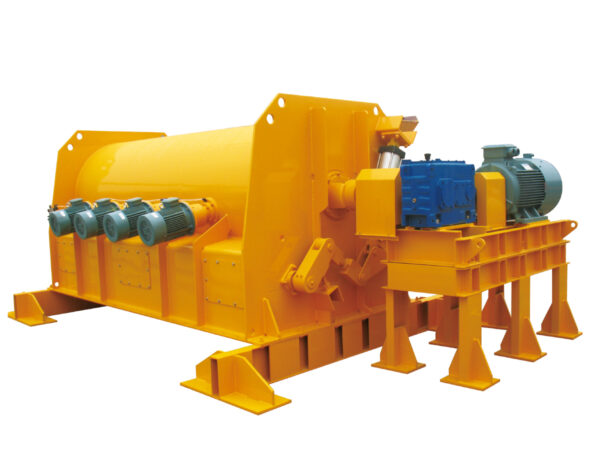

Dry Mortar Mixer

Product Details

Advantages of YUANYOU Dry Mortar Mixer

  1. YUANYOU WD Series horizontal single shaft mixer is based on the principle of mechanical fluidization of products which ensures fine mix within the shortest possible time. The mixing time is 90S-180S subject to recipe.
  2. High mixing accuracy, maximum mixing homogeneity without segregation. The mixing ratio can reach 1:10000 meeting the engineering requirements to the max.
  3. Special single discharge door with no dead area, no residue, no leakage and short discharging time.
  4. Manual sample access is available for users to sample and examine.
  5. The mixing drum and blades are made of anti-wearing alloy, the high speed cutters are made of anti-wear cast alloy which prolonging the running-life-time of mixer.

 Parameters

Model WD1200 WD2000 WD3000 WD4500 WD6000
Capacity(Ton/Batch) 1 2 3 4 5
Capacity(Ton/Hour) 10~20 20~40 40~60 60~80 80~120
Power(KW) 30 37 55 75 110
High Speed End Three-Pole(5.5kW) Three-Pole(5.5kW) Four-Pole(5.5kW) Four-Pole(5.5kW) Four-Pole(5.5kW)
Aggregate Size (mm) 0~4.75 0~4.75 0~4.75 0~4.75 0~4.75
